Can Paper Corner Guards Improve Pallet Stacking Strength? In warehousing and logistics, space is money. To optimize warehouse footprints, managers always aim to stack pallets as high as possible. However, this vertical ambition often ends in disaster: bottom cartons buckle, pallet stacks lean, and thousands of dollars of product are crushed.
Many believe the solution is simply to buy thicker corrugated boxes. But physics tells a different story. To truly secure your warehouse and double your storage capacity, you need to understand the structural physics of vertical load distribution and why paper corner guards (angle boards) are a non-negotiable tool.
The Stacking Physics: Why Bottom Cartons Buckle Under Load
When you stack three pallets on top of each other, the bottom pallet does not just bear a static “dead load.” During shipping, it endures dynamic vertical stress.
Did You Know? “In packaging engineering, the distribution of vertical pressure is highly uneven. According to research published by the IEOM Society (2023) and principles in Soroka’s Fundamentals of Packaging Technology, the four vertical corners of a corrugated box carry 60% to 80% of the total stacking load. This is why corner protection is not just an ‘extra’—it is the backbone of your cargo’s structural integrity during long-term storage.”
As a pallet stack begins to vibrate during truck or rail transport, the load shifts. If a single box corner experiences a brief spike in downward force, it reaches its elastic limit and undergoes buckling. Once one corner fails, a domino effect occurs, causing the entire pallet load to lean and eventually collapse.
McKee’s Formula and the Limits of Corrugated Board
McKee’s Formula and the Limits of Corrugated Board To understand why cartons fail, packaging engineers rely on McKee’s Formula, which calculates a box’s ultimate Box Compression Test (BCT) strength based on its Edge Crush Test (ECT), board thickness, and perimeter.
However, while McKee’s formula provides a baseline in controlled laboratory settings, it does not account for the Environmental and Stacking Factors found in real-world logistics. According to industry-standard safety factor models (e.g., Fibre Box Association / ASTM D4169), a standard corrugated box can lose 50% to 60% of its theoretical strength due to the combined effects of long-term storage (creep) and dynamic fatigue (vibration during transit). For instance, after 90 days of storage, a box typically retains only 55% of its original strength. When these factors are combined with high humidity, relying solely on the carton’s paperboard to support multi-ton loads becomes a significant mathematical risk.
The Pillar Effect: How Angle Boards Redistribute Vertical Load

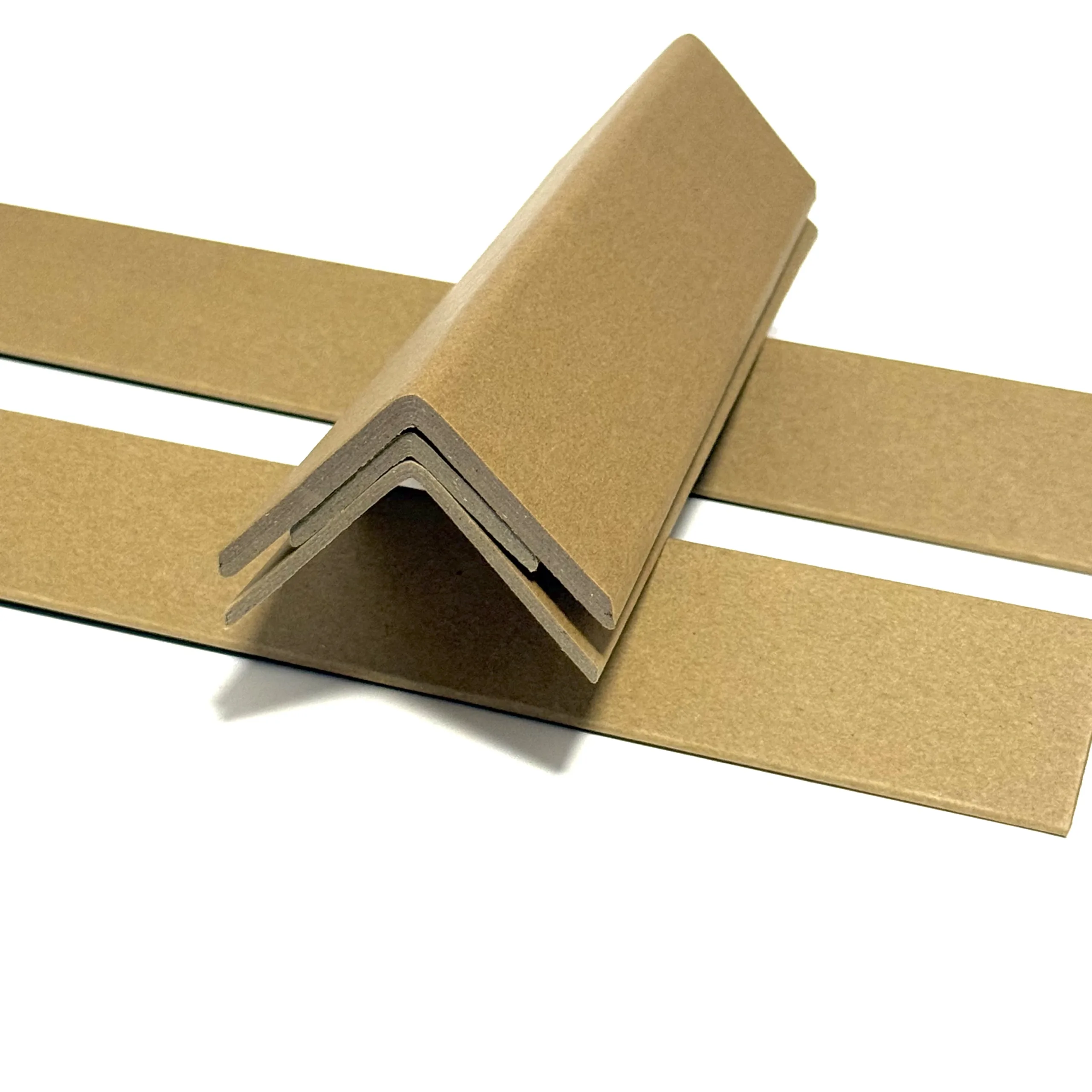

This is where paper edge protectors change the physics of the pallet. Instead of forcing the corrugated boxes to bear the entire load, adding four heavy-duty paper corner guards (with a typical caliper of 4mm to 6mm) introduces the “Pillar Effect”.
When placed at the four corners of a pallet and tightly stretch-wrapped or strapped, these L-shaped profiles act as rigid vertical support columns.
- Load Sharing:Compression testing based on ASTM D642 can be used to compare pallets with and without edge protectors,in our compression test, adding high-density paper edge protectors redistributes the vertical weight, carrying up to 45% to 60% of the top-load pressure.
- Strap Tension Equalization:They allow strapping bands to be tensioned up to 150+ kg without crushing the carton corners, binding the individual boxes into a single, cohesive, rigid block.
From to Structural “Pillar Effect” – Selection Guide
| Grade | Wing Width | Thickness | Recommended Application | Rating |
| Standard | 30 – 40 mm | 2.5 – 3.5 mm | Lightweight carton reinforcement and anti-strap indentation. | ⭐⭐⭐⭐ |
| Reinforced | 40 – 50 mm | 4.0 – 5.0 mm | Stacking protection for medium-to-heavy furniture and appliances. Best Value. | ⭐⭐⭐⭐⭐ |
| Heavy-Duty | 60 – 80 mm | 6.0 – 8.0 mm | Introduces the “Pillar Effect” to support extra-heavy pallet stacking. | ⭐⭐⭐⭐⭐ |
| Industrial | 100 mm | 8.0 – 10.0 mm | Specialized for exporting steel, construction materials, or ultra-heavy machinery. | ⭐⭐⭐ |
Most global clients find their optimal balance within our 30-50mm width and 3-5mm thickness range. These specifications are light enough to save freight, yet strong enough to eliminate strap damage.
By selecting reinforced 5.0mm+ profiles, you activate the ‘Pillar Effect’—essential for supporting vertical loads that moisture-compromised cartons can no longer bear during long-sea transit.
Conclusion: Double Your Storage, Protect Your Bottom Line
By utilizing the physics of vertical reinforcement, paper corner guards do not just protect edges—they transform your pallets into self-supporting structures. This allows warehouses to safely double-stack or triple-stack pallets, instantly increasing storage efficiency by without upgrading to expensive, heavy-test corrugated boxes.
For high-volume shippers, the math is simple: a few cents invested in factory-direct, high-compression angle boards saves thousands of dollars in warehouse space and cargo damage claims.
